Baler Machine

Capacity 150 Ton Pressure Capacity. FIBC BAGS Baler Machine Bale Size 42(L)x36(W) in Inch Bale Weight 450 to 500 Kg. Chamber Size 42(L)x36(W)x84(H) In Inch No. of Cylinder 2 Nos. No. of Tie 4 Nos. No. Of Door 2 Nos. Main Cylinder Size 300(Bore)*355(Od)*180(Ram)*1700 (Stroke) mm Eject Cylinder Size 125(Bore)*150(Od)*80(Ram)*700 (Stroke) mm Bale Eject By Cylinder. Oil Tank Capacity 500 Liters. Production Rates 25 To 30 Minuets Hydraulic System Double Vane Pump Systems. Day light Gap 84 Inch Operation Hand levers Operate Systems. Electric Motor 25 + 3 HP Motor 3Phase 1440 RPM 50Hz Delivery Time 30 Working Days. Overall Dimension 110 (L)x 80 (W) x 180 (H) In Inch Body Plate 12mm,16mm,35mm (INTIAL 2 MM SS PLATE)

Capacity 75 Ton Pressure Capacity. Single Chamber Single Cylinder Baler Machine Bale Size 32(L)x26(W) in Inch Bale Weight PET BOTTLE 200 Kg. / CARTOON 250 KG Chamber Size 32(L)x26(W)x72(H) In Inch No. of Cylinder 1 Main + 1 Pusher (2 Nos.) No. of Tie 4 Nos. No. Of Door 2 Nos. Cylinder Size 200(Bore)*245(Od)*135(Ram)*1400 (Stroke) mm Bale Eject Cylinder Systems Oil Tank Capacity 300 Liters. Production Rates 20 To 25 Minuets Hydraulic System Double Vane Pump Systems. Day light Gap 72 Inch Operation Hand levers Operate Systems. Electric Motor 15 + 3 HP Motor 3Phase 1440 RPM 50Hz Delivery Time 25 Working Days. Overall Dimension 100 (L) x 70 (W) x 160(H) In Inch Body Plate 8 mm,12mm,30mm

Capacity 120 Ton Pressure Capacity. Single Chamber Single Cylinder Baler Machine Bale Size 60(L)x40(W) in Inch Bale Weight 800 to 1000 Kg. Chamber Size 60(L)x40(W)x84(H) In Inch No. of Cylinder 2 Nos. No. of Tie 8 Nos. No. Of Door 2 Nos. Cylinder Size 180(Bore)*220(Od)*110(Ram)*1700 (Stroke) mm Bale Eject By Wire Rope Systems Oil Tank Capacity 500 Liters. Production Rates 20 To 25 Minuets Hydraulic System Double Pump Systems. Day light Gap 84 Inch Operation Hand Leaver Operate Systems. Electric Motor 10 HP Motor 3Phase 1440 RPM 50Hz Quotation Valid 10 Days. Delivery Time 25 Working Days. Overall Dimension 102 (L) x 50 (W) x 170(H) In Inch Body Plate 8 mm,12mm,30mm

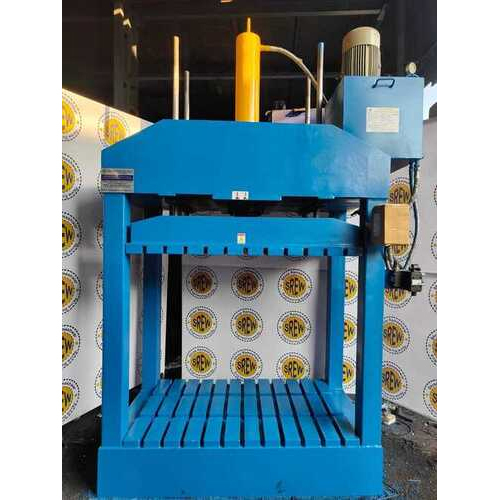

Capacity 40 Ton Pressure Capacity. Woven Sacks Baler Machine Bale Size 60(L)x40(W) in Inch Chamber Size 60(L)x40(W)x50(H) In Inch Bale Weight 100 to 150 Kg. No. of Cylinder 1 Nos. No. of Gide 4 Nos. No. Of Pillar 4 Nos. Cylinder Size 160(Bore)*180(Od)*100(Ram)*1150 (Stroke) mm Oil Tank Capacity 100 Liters. Production Rates 10 To 15 Minuets Hydraulic System Gear Pump Systems. Day light Gap 50 Inch Operation Hand levers Operate Systems. Electric Motor 10 HP Motor 3Phase 1440 RPM 50Hz Electric Starter Provided Delivery Time 25 Working Days. Overall Dimension 90 (L) x 60 (W) x 125(H) In Inch Machine Weight Approx. 2000 Kg. Body Plate 8mm,12mm,25mm

Capacity 40 Ton Pressure Capacity. Single Chamber Single Cylinder Baler Machine Bale Size 32(L)x26(W) in Inch Bale Weight 80 to 120 Kg. Chamber Size 32(L)x26(W)x56(H) In Inch No. of Cylinder 1 Nos. No. of Tie 3 Nos. No. Of Door 2 Nos. Cylinder Size 160(Bore)*195(Od)*100(Ram)*1200 (Stroke) mm Bale Eject Swing Plat With Screw Systems Oil Tank Capacity 200 Liters. Production Rates 10 To 15 Minuets Hydraulic System Vane Pump Systems. Day light Gap 56 Inch Operation Hand levers Operate Systems. Electric Motor Make ISI 10 HP Motor 3 Phase 1440 RPM 50Hz Quotation Valid 5 Days. Delivery Time 25 Working Days. Overall Dimension 90 (L) x 36 (W) x 130(H) In Inch Body Plate 8mm,12mm,30mm

Capacity 60 Ton (Single Box & Single Cylinder) O FRAME TYPE Bale Size 24(L)x18(W) Bale Weight 75 to 100 kg Camber Size 24(L)x18(W)x80(H) Inch No. of Door 3 Nos. No. of Tie 6 Nos. No. of Cylinder 2 Nos. Main Cylinder Size 180(Bore)*120(Ram)*1800(Stroke) mm Side Cylinder Size 100(Bore)*70(Ram)*500(Stroke) mm Oil Tank Capacity 300 Liters Production Rates 10 min. Hydraulic System Double Vane Pump Operation 20 Size Hand Lever Valve Operate. Electric Motor 15 +3 HP 3 Phase 1440 RMP Starter Provided Up Down Time 34 Second Delivery Time 25 Days Overall Dimension 76 (L) x 30 (W) x 188 (H) Inch Body Plate 12 mm +16 mm + 50 mm

Capacity 150 Ton Pressure Capacity. Single Chamber Single Cylinder Baler Machine Bale Size 48(L)x18(W) in Inch Bale Weight 150 TO 170 Kg. Chamber Size 48(L)x18(W)x72(H) In Inch No. of Cylinder 2 MAIN + 1 SIDE DOOR + 1 LOCK (4 Nos.) No. of Tie 10 Nos. No. Of Door 3 +3 Nos. Cylinder Size Bale Eject Swing Plat With Cylinder Systems Oil Tank Capacity 400 Liters. Production Rates 15 To 20 Minuets Hydraulic System Double Pump Systems. Day light Gap 72 Inch Operation Hand levers Operate Systems. Electric Motor Make ISI 20 + 3 HP Motor 3Phase 1440 RPM 50Hz Delivery Time 30 Working Days. Overall Dimension 110 (L) x 50 (W) x 180(H) In Inch Body Plate 8mm,10mm,12mm,30mm

Capacity 100 Ton Pressure Capacity. Single Chamber Single Cylinder Baler Machine Bale Size 36(L)x26(W) in Inch Bale Weight 250 to 300 Kg. Chamber Size 36(L)x26(W)x72(H) In Inch No. of Cylinder 2 Nos. (1 MAIN + 1 PUSHER) No. of Tie 4 Nos. No. Of Door 2 Nos. Cylinder Size 220(Bore)*270(Od)*150(Ram)*1500 (Stroke) mm Bale Eject By Cylinder. Oil Tank Capacity 300 Liters. Production Rates 15 To 20 Minuets Hydraulic System Double Vane Pump Systems. Day light Gap 72 Inch Operation Hand levers Operate Systems. Electric Motor 20 + 3 HP Motor 3Phase 1440 RPM 50Hz Quotation Valid 5 Days. Delivery Time 30 Working Days. Overall Dimension 110 (L)x 80 (W) x 160 (H) In Inch Body Plate 12mm,16mm,35mm

Capacity 150 Ton Pressure Capacity. FIBC BAGS Baler Machine Bale Size 42(L)x36(W) in Inch Bale Weight 450 to 500 Kg. Chamber Size 42(L)x36(W)x84(H) In Inch No. of Cylinder 2 Nos. No. of Tie 4 Nos. No. Of Door 2 Nos. Main Cylinder Size 300(Bore)*355(Od)*180(Ram)*1700 (Stroke) mm Eject Cylinder Size 125(Bore)*150(Od)*80(Ram)*700 (Stroke) mm Bale Eject By Cylinder. Oil Tank Capacity 500 Liters. Production Rates 25 To 30 Minuets Hydraulic System Double Vane Pump Systems. Day light Gap 84 Inch Operation Hand levers Operate Systems. Electric Motor 25 + 3 HP Motor 3Phase 1440 RPM 50Hz Delivery Time 30 Working Days. Overall Dimension 110 (L)x 80 (W) x 180 (H) In Inch Body Plate 12mm,16mm,35mm (INTIAL 2 MM SS PLATE)

Capacity 40 Ton Pressure Capacity. Woven Sacks Baler Machine Bale Size 40(L)x60(W) in Inch Chamber Size 40(L)x60(W)x50(H) In Inch Bale Weight 100 to 150 Kg. No. of Cylinder 1 Nos. No. of Gide 4 Nos. No. Of Pillar 4 Nos. Cylinder Size 160(Bore)*180(Od)*100(Ram)*1150 (Stroke) mm Oil Tank Capacity 100 Liters. Production Rates 10 To 15 Minuets Hydraulic System Gear Pump Systems. Day light Gap 50 Inch Operation Hand levers Operate Systems. Electric Motor 10 HP Motor 3Phase 1440 RPM 50Hz Electric Starter Provided Delivery Time 25 Working Days. Overall Dimension 60 (L) x 90 (W) x 125(H) In Inch Machine Weight Approx. 2000 Kg. Body Plate 8mm,12mm,25mm

Capacity 40 Ton Pressure Drum Crusher Baler Machine Bale Size 24(L)x24(W) in Inch Chamber Size 30(L)x30(W)x50(H) In Inch No. of Cylinder 1 Nos. No. of Tie 3 Nos. No. Of Door 2 Nos. Cylinder Size 160(Bore)*195(Od)*105(Ram)*1150 (Stroke) mm Bale Eject MANNUAL Oil Tank Capacity 150 Liters. Production Rates 1 To 2 Minuets Hydraulic System Vane Pump Systems. Day light Gap 50 Inch Operation Hand levers Operate Systems. Electric Motor 10 HP Motor 3Phase 1440 RPM 50Hz Delivery Time 25 Working Days. Overall Dimension 80 (L) x 40 (W) x 120(H) In Inch Body Plate 8mm,10mm,12mm,30mm

Capacity 40 Ton Pressure Capacity. Woven Sacks Baler Machine Bale Size 40(L)x60(W) in Inch Chamber Size 40(L)x60(W)x50(H) In Inch Bale Weight 100 to 150 Kg. No. of Cylinder 1 Nos. No. of Gide 4 Nos. No. Of Pillar 4 Nos. Cylinder Size 160(Bore)*180(Od)*100(Ram)*1150 (Stroke) mm Oil Tank Capacity 100 Liters. Production Rates 10 To 15 Minuets Hydraulic System Gear Pump Systems. Day light Gap 50 Inch Operation Hand levers Operate Systems. Electric Motor 10 HP Motor 3Phase 1440 RPM 50Hz Electric Starter Provided Delivery Time 25 Working Days. Overall Dimension 60 (L) x 90 (W) x 125(H) In Inch Machine Weight Approx. 2000 Kg. Body Plate 8mm,12mm,25mm
